Application of Micro Tube Demister
in Spray Drying Exhaust Gas Treatment
On March 3, 2024, the micro tube demister for spray drying exhaust gas purification spray tower of a chemical plant was put into operation.

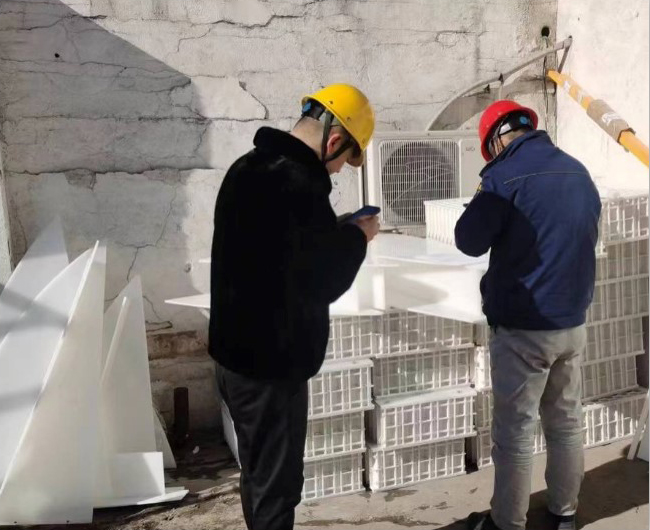

Delivery in February 2024.

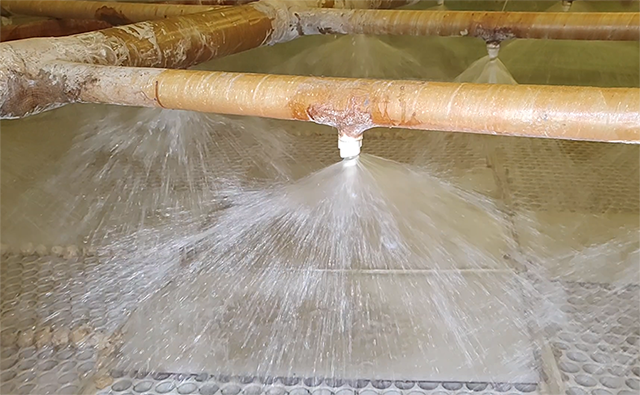

Flush water test：

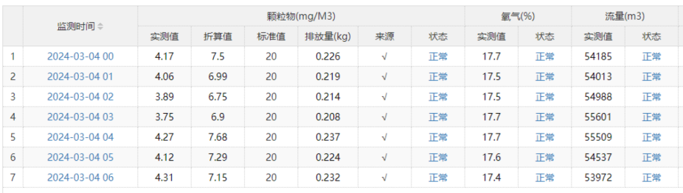

Monitoring data of particulate matter concentration at the discharge outlet when put into operation in early March 2024:

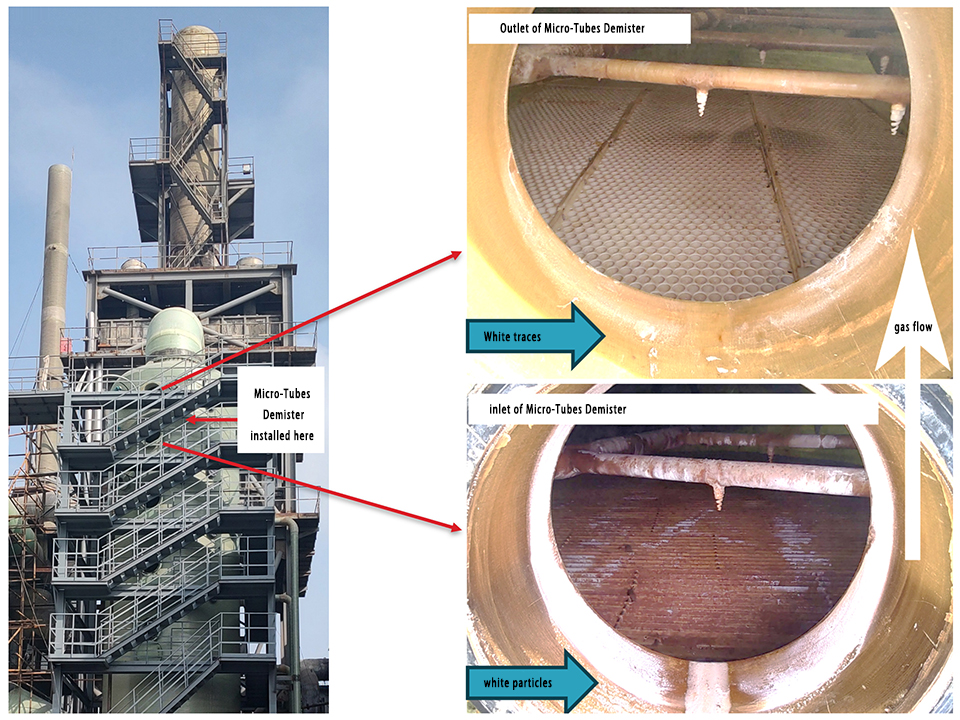

The situation of opening the manhole door on April 7, 2024:

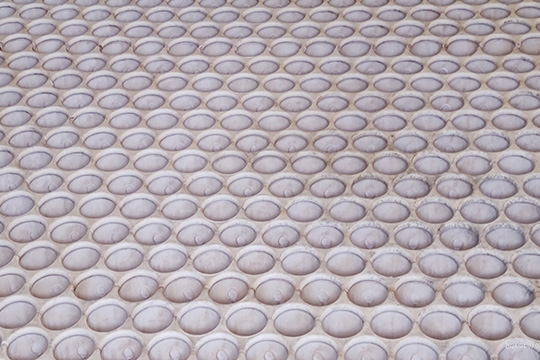

On April 7, 2024, the surface of the micro tube demister kept cleaned without the need for manual flushing.

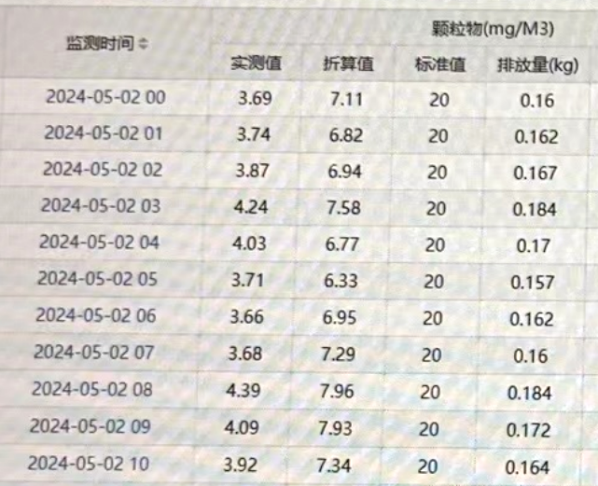

Monitoring data for particulate matter at emission outlets on May 2, 2023.
The application of micro tube demister shows that:
In the case of high concentration of imported particulate matter, no obvious dirt or blockage risk is observed;
The airflow resistance is about 50Pa;
The concentration of exported particulate matter is very low;
Operation stable and reliable .
Outstanding advantages:
low resistance, low emissions, easy cleaning, small space, and low cost
Learn more：Article Published in Journals:
Application of Micro Tube Demister in Spray Drying Exhaust Gas Treatment,
CHINA ENVIRONMENTAL INDUSTRY 202407 ，pdf in Chinese
